TR-1005/TR-1010 Frequency Conversion Power

Enlarging type frequency conversion power of the transistor

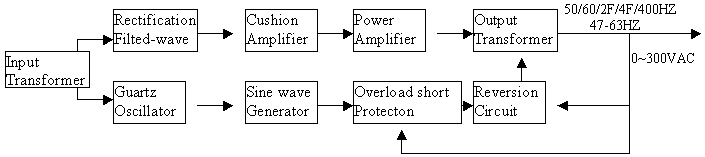

The block diagram of transistor enlarge circuit work :

TR-1005/TR-1010 series: Electric characteristic and capacity;
Phase
single-phase
Model
TR-1005
TR-1010
Capacity
500VA
1KVA
Input
Voltage
12W 220V¡À10%
Frequency
50HZ/ 60HZ¡À5%
Output
Voltage
0~150V, 0~300V
Current
4.2/2.1A
8.4/4.2A
Frequency
47~63, 50, 60, 2F, 4F, 400HZ
Frequency steady degree
0.01%
Steady voltage rate of load
¡Ü0.3%
Tatal syntonic distortion
¡Ü0.3%
Output Display
Display:Voltage¡¢Current¡¢Frequency¡¢Power
Protector
overload, short, warm, excessive pressure, protecting and warning
Size£¨W¡ÁH¡ÁD£© mm
430¡Á178¡Á515
430¡Á220¡Á550
Weight degree £¨kg£©
32
48
Working environment
Temperature;0~40¡æ£»Humidity: 10~90% RH
