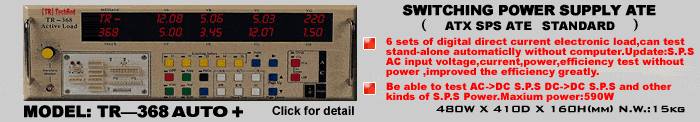

 Stand-alone
automatic/manual control:ATX,P¢ó,P¢ô,S.P.S.and S.P.S. power.
Can save
5 kinds of load,circulate test dynamic automaticly.
Mainframe
power voltage:AC 110/AC 220V selectable, AC power of S.P.S is supplied
by external AC;or supplied by inside AC 110V/AC 220V,can be selected
by panel switch.
S.P.S
AC input voltage¡¢current¡¢power¡¢power factor,efficiency test. |
|
6 sets of load(4 pos.and 2 neg.,or customize according to customer)
| Group |
+VA |
+VB |
-VC |
-VD |
+VE |
+VF |
| Current Range |
0 ¡« 40A |
0 ¡« 4A |
0 ¡« 20A |
0 ¡« 4A |
| Voltage Range |
0 ¡« (40 ¡« 80)V |
0 ¡« 40V |
| maximum Power |
200W |
30W |
100W |
30W |
| Over power(15S) |
300W |
|
150W |
40W |
|
| |
|
|
|
| |
Test
Function:
Test automaticly
and display 6 sets of load direct current voltage,voltage short
protection test;Hi/Lo voltage limit setting for direct current voltage;
test and display power comsuption.
OPP single
key testing can set parameter manually, display power comsuption
or total comsuption of each groups.
Can test
boot-strap time of Setup¡¢PG Ring¡¢P.G and turnoff time of Hold On¡¢PF
Ring¡¢P.F.
BNC port
can be selected by rolling wave-band switch,work in oscillograph
etc.(options),test the wave shape of eac(RIPPLE&NOLSE).
Built-in
PS¡ªON/OFF function,provide ATX/AT Power standard tooling,or customize
special tooling according to customer.
INT/EXT select
S.P.S. as input power,inside select AC 110V or AC 220V,three sets
of external AC input can be used by AC Line Regulation when testing. |
|
Option£º
Oscillograph¡¢power
form¡¢Frequency conversion power¡¢Resistance load test panel¡¢Electronic
load test panel¡¢Safe testing system.
|
| |
