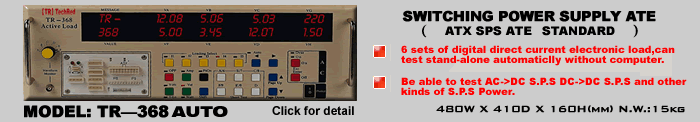

Stand-alone automatic/manual control:ATX,P¢ó,P¢ô,S.P.S.and S.P.S.
power.
Can save
5 kinds of load,circulate test dynamic automaticly.
Mainframe
power voltage:AC 110/AC 220V selectable, AC power of S.P.S is
supplied by external AC;or supplied by inside AC 110V/AC 220V,can
be selected by panel switch.
|
|
6 sets of load(4 pos.and 2 neg.,or customize according to customer)
| Group |
+VA |
+VB |
-VC |
-VD |
+VF |
+VE |
| Current Range |
0 ¡« 40A |
0 ¡« 4A |
0 ¡« 20A |
| Voltage Range |
0 ¡« 40V(0 ¡« 80V selectable) |
0 ¡« 40V |
|
maximum Power |
200W |
30W |
100W |
| Over power(15S) |
300W |
|
150W |
|
| |
|
|
|
| |
Test
Function£º
Test automaticly
and display 6 sets of load direct current voltage.
Hi/Lo voltage
limit setting for 6 sets of load direct current voltage.
Test and
display power comsuption of each 6 sets of load.
Short protection
test of 6 groups of voltage.
OPP single
key testing can set parameter manually, display power comsuption
or total comsuption of each groups.
Can test
boot-strap time of Setup¡¢PG Ring¡¢P.G and turnoff time of Hold On¡¢PF
Ring¡¢P.F.
BNC port
can be selected by rolling wave-band switch,work in oscillograph
etc.(options),test the wave shape of eac(RIPPLE&NOLSE).
Built-in
PS¡ªON/OFF function.
Provide ATX/AT
Power standard tooling,or customize special tooling according to
customer.
Test and
display S.P.S input AC voltage/current.
INT/EXT select
S.P.S. as input power,inside select AC 110V or AC 220V,three sets
of external AC input can be used by AC Line Regulation when testing. |
|
Option£º
Oscillograph:20M
¡« 50M(Import),Test RIPPLE & NOISE.
Power form:Effective
power¡¢inactive power¡¢power comsumption factor when PFC etc.testing.
Frequency
Conversion Power:0.5¡¢1¡¢3¡¢5 KVA.
Resistance
load test panel,Electronic load test panel.
Safe testing
system£ºResist pressure¡¢insulated ¡¢Earthing resistance¡¢drain current¡¢leakage
current,accord TUV¡¢UL¡¢etc. IEC standard.
|
| |
