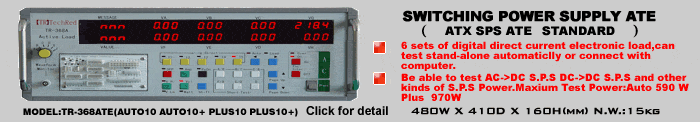

Stand-alone automatic/manual control:ATX,P¢ó,P¢ô,S.P.S.and S.P.S. power while offline.
Can save 10 kinds of load,circulate test dynamic automaticly.
Built-in RS-232C panel,COM1 or COM2 PORT,can connect computer to be controled.
Mainframe power voltage:AC 110/AC 220V selectable, AC power of S.P.S is supplied by external AC;or supplied by inside AC 110V/AC 220V,can be selected by panel switch(options).
S.P.S AC input voltage¡¢current¡¢power¡¢power factor,efficiency test.
(AUTO10+¡¢PLUS10+ only)
Test Function:

AUTO ATE Stand-alone automatic/manual function like TR¡ª368AUTO
AUTO+ ATE Stand-alone automatic/manual function likeTR¡ª368AUTO+
PLUS ATE Stand-alone automatic/manual function like TR¡ª368PLUS
PLUS+ ATE Stand-alone automatic/manual function like TR¡ª368PLUS+
Windows operation enviroment,adapt WIN95 WIN98 WINNT/XP OS.
Allocate strong tabulation test report procedure , await measuring the product specification , test parameters, The test result is stored, materials preview, the statistical report form. PASS WORD¡­¡­The function specification is perfect.
Test one in a totally new way: Await the opportune moment S. P.S O/P; S.P.S O/P PG beats and tests, dynamic load is tested.
Options: AUTO + + ATE, PLUS of ATE, set up computer test automatically. S.P.S apparent power, active power , power factor. Efficiency EFFICIENCY.
  6 sets of load(4 pos.and 2 neg.,or customize according to customer)
AUTO AUTO+ ATE
Group
+VA
+VB
-VC
-VD
+VF
+VE
Current Range
0 ¡« 40A
0 ¡« 4A
0 ¡« 20A
Voltage Range
(0 ¡« 80V selectable)
0 ¡« 40V
maximum Power
200W
30W
100W
Over power(15S)
300W

40W

150W

PLUS PLUS+ ATE
Group
+VA
+VB
-VC
-VD
+VE
+VF
Current Range
0 ¡« 40A
0¡« 80A
0 ¡« 4A
0 ¡« 40A
0 ¡« 8A
Voltage Range
0 ¡« 80V
0 ¡« 40V
maximum Power
250W
400W
35W
250W
35W
Over power(15S)
350W
500W

40W

350W
40W



Option£º

Oscillograph¡¢power form¡¢Frequency conversion power¡¢Resistance load test panel¡¢Electronic load test panel¡¢Safe testing system.
