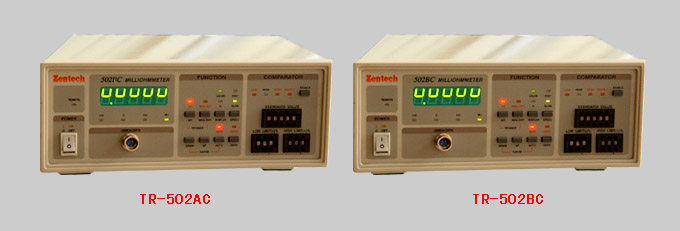

Model
|
502AC
|
502BC
|
|
Range
Basic Measurement Accuracy(Note 1):Test Current
|
|
20mΩ
|
|
1A
|
|
200mΩ
|
100mA
|
100mA
|
|
2Ω
|
100mA
|
100mA
|
|
20Ω
|
10mA
|
10mA
|
|
200Ω
|
1mA
|
1mA
|
|
2KΩ
|
100uA
|
100uA
|
|
20KΩ
|
10uA
|
10uA
|
|
200KΩ
|
1uA
|
1uA
|
|
2MΩ
|
|
1uA
|
|
Display
Range
|
|
|
0.01mΩ～199.99KΩ
|
0.001mΩ～1.9999MΩ
|
|
Accuracy
|
|
0.001mΩ～19.999MΩ
|
|
0.1%+3counts
|
|
0.01mΩ～1.9999Ω
|
0.05%+3counts
|
0.05%+3counts
|
|
2.000Ω～199.99KΩ
|
0.05%+2counts
|
0.05%+2counts
|
|
200.0KΩ～1.9999MΩ
|
|
0.05%+2counts
|
|
Measurement Speed
|
|
Fast
|
5meas./sec
|
|
Slow
|
2.5meas./sec
|
|
Trigger
|
Internal,
External (Manual)
|
|
Display
|
41/2digits
|
|
Correction Function
|
Zero
|
|
Judgment
|
|
|
GO/NG judgment
|
|
|
Output
from standard HSANDLER interface
|
|
General
|
|
Operation Environment
|
Temperature:10℃~40℃,Humidity:10﹪~90﹪R.H.
|
|
Power
Consumption
|
30VA max
|
|
Power
Requirement
|
90~125Vac
or180~250Vac,48Hz~62Hz
|
|
Weight
|
Approx.
4kg
|
|
Size
(W×H×D)
|
270×105×350mm
|
特點：
解析度：0.01mΩ
